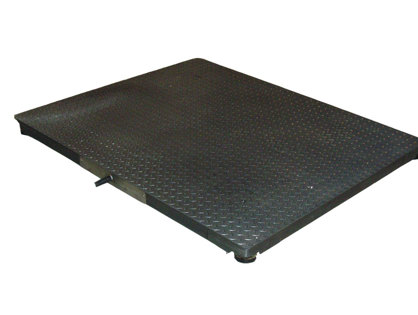

MPE - TABLE PLATFORM SCALE

PLATFORMS

They are simple structures and easily portable. Depending on their intended use, they can be made of ordinary or stainless steel.

CONTROL ELECTRONICS

Various types of display devices can be connected to the platforms, depending on their intended use and technical capabilities.

ELECTRONIC COMPONENTS

The weighbridges are equipped with components with top-quality global certifications that ensure high measurement accuracy.

INSTALLATION AND SERVICE

The manufacturer (VAGE d.o.o.) or an authorized service provider carries out the installation and commissioning of the weighbridge.

WORKING ENVIRONMENT

The weighbridges are resistant to dirt and moisture. Protection IP65. Resistance to electrical interference fully satisfies legal requirements, OIML recommendations, and international standards.



Type Scale dimensions
(mm)
Load
(kg)
Division
(g)
MPE 6 290x360*; 280x300** 6 2
MPE 15 290x360*; 300x400** 15 5
MPE 30 290x360*; 300x400** 30 10
MPE 60 400x500*; 400x500** 60 20
MPE 100 400x500*; 400x500** 100 50
MPE 150 400x500*; 500x700**
400x600**; 600x700**
150 50
MPE 300 400x500*; 500x700*
400x600**; 600x700**
300 100

Prospekt MPE-Stolne

Documentation
