WLC precision scales are designed for quick and accurate determination of the weight of goods placed on the load receptor in laboratory and industrial working conditions.

They can be easily used in areas where there is no access to power (240 V), as they come with internal rechargeable batteries and an RS232 interface.

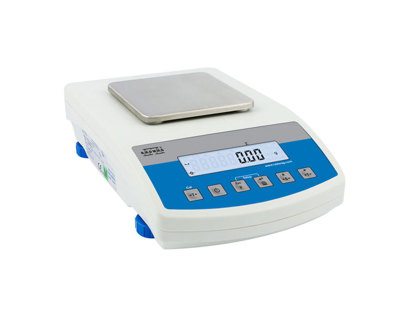

The WLC series of scales, depending on the model (load receptor: 125x145, 128x128, 195x195, 300x300 and 400x500 mm) and capacity, is equipped with a stainless steel platform and an LCD display with backlighting that allows for good visibility of the weigh results.

The A2 series of precision scales offer the possibility of measuring weight outside of the load receptor (called under weighing). This is an alternative for weighing loads of non-standard dimensions and shapes or those that produce a magnetic field.

TECHNICAL DATA	WLC 0,6/B1	WLC 0,6/A1	WLC 1/A2	WLC 2/A2	WLC 6/A2	WLC 10/A2	WLC 20/A2
			-	-		-	-
Load:	0,6 kg	0,6 kg	1kg	2kg	6kg	10kg	20kg
Division:	0,01 g	0,01 g	0,01g	0,01g	0,1g	0,1g	0,1g
Tare range:	-0,6 kg	-0,6 kg	-1kg	-2kg	-6kg	-10kg	-20kg
Repeatability:	0,01 g	0,01 g	0,03g	0,03g	0,1g	0,2g	0,2g
Linearity:	±0,01 g	±0,01 g	±0,03g	±0,03g	±0,1g	±0,2g	±0,2g
Load receiver:	125×145 mm	128×128 mm	195×195 mm
Stabilization time:	3 s
Operating temperature:	+15° - +30° C
IP protection:	IP 43
Power supply:	11V AC, 10,5 ÷15V DC Imax = 600mA, i baterije
Working time with batteries:	35 hours (average time)	45 hours (average time)
Display:	LCD (backlight)
Intermediate assembly:	RS 232
Humidity conditions:	10÷85% RH without condensation
Net/Gross mass:	1,1/2 kg	2,8/4,8 kg	2,8/4,3 kg
Package dimensions:	320×210×150 mm	470×380×336 mm

TEHNIČKI PODACI	WLC 6/F1/R	WLC 12/F1/R	WLC 30/F1/R	WLC 60/C2/R	WLC 120/C2/R
	WLC 6/F1/K	WLC 12/F1/K	WLC 30/F1/K	WLC 60/C2/K	WLC 120/C2/K
		-	-		-
Nosivost:	6kg	12kg	30kg	60kg	120 kg
Podjeljak:	0,1g	0,2g	0,5g	1g	2 g
Opseg tare:	-6kg	-12kg	-30kg	-60kg	-120 kg
Ponovljivost:	0,3g	0,6g	1,5g	1g	2 g
Linearnost:	±0,3g	±0,6g	±1,5g	±1g	±2 g
Prijemnik opterećenja:	300×300 mm			400×500 mm
Vrijeme stabilizacije:	3 s
Radna temperatura:	+15° - +30° C
IP zaštita:	IP 43
Napajanje:	11V AC, 10,5 ÷15V DC Imax = 600mA, i baterije
Vrijeme rada s baterijama:	35 sati (prosječno vrijeme)
Displej:	LCD (pozadinsko osvijetljenje)
Međusklop:	RS 232
Uvjeti vlage:	10÷85% RH bez kondenzacije
Neto/Bruto masa:	5,2/6 kg			12,5/15 kg
Dimenzije pakiranja:	570×390×170 mm			720×580×220 mm
